TIME-SERT 3300 Metric Aluminum Oil Pan Thread Repair Master Kit

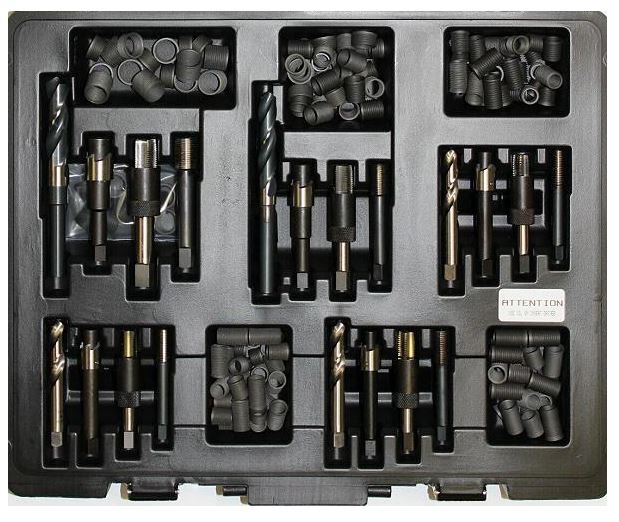

TIME-SERT 3300 Metric Aluminum Oil Pan Thread Repair Master Kit image

Product #: TS-3300 DLT


Your Price: $721.07


Includes Free Shipping. Time-Sert aluminum oil pan drain plug thread repair repair kit includes tooling and inserts for the following sizes; M12x1.25, M12x1.5, M12x1.75, M14x1.5 and M18x1.5. This kit is a must for any repair shops that perform oil changes. Just one aluminum drain plug thread repair can save hundreds of dollars! This kit not only restores the oil pan back to it's original thread size... it makes it STRONGER! This kit includes some of the most common metric sizes. Why replace an oil pan for around $500 or more when this repair can be done on the vehicle for a a fraction of the cost? Are aluminum threads stronger than the steel threads? Of course not, that's why TIME-SERT thread inserts are a better option than replacing an aluminum oil pan. This kit is frequently used on GM's, Ford, Chrysler products and Hondas - it can be used on any make with the sizes mentioned above.

How do you get the metal out of the pan? See the FAQ's video below for the answer to this and more.

Timesert is recommended by leading automotive manufacturers.

  M12x1.25 - Contents of the TIME-SERT M12x1.25 portion of the kit includes the following - Diameter 12mm and Thread Pitch measures 1.25mm

    Drill Bit for drilling initial hole for thread tap.

    C-bore or Counter Bore for making recess for lip of insert, allowing insert to sit "flush".

    Tap guide, to guide tap in straight.

    Tap, for tapping new threads for insert.

    Driver, for installing thread insert.

    10 steel inserts 9mm length, PN 12121

    10 steel inserts 12.7mm length, PN 12123

    10 steel inserts 17.8mm length, PN 12125

 M12x1.5 - Contents of the TIME-SERT M12x1.50 portion of the kit includes the following - Diameter 12mm and Thread Pitch measures 1.50mm

    Drill Bit for drilling initial hole for thread tap.

    C-bore or Counter Bore for making recess for lip of insert, allowing insert to sit "flush".

    Tap guide, to guide tap in straight.

    Tap, for tapping new threads for insert.

    Driver, for installing thread insert.

    10 steel inserts 9.2mm length, PN 12151

    10 steel inserts 16.2mm length, PN 12153

    10 steel inserts 24mm length, PN 12155

 M12x1.75 - Contents of the TIME-SERT M12x1.75 portion of the kit includes the following - Diameter 12mm and Thread Pitch measures 1.75mm

    Drill Bit for drilling initial hole for thread tap.

    C-bore or Counter Bore for making recess for lip of insert, allowing insert to sit "flush".

    Tap guide, to guide tap in straight.

    Tap, for tapping new threads for insert.

    Driver, for installing thread insert.

    10 steel inserts 12mm length, PN 12170

    10 steel inserts 16.2mm length, PN 12171

    10 steel inserts 24mm length, PN 12173

 M14x1.5Contents of the TIME-SERT M14x1.5 portion of the kit includes the following - Diameter 14mm Thread Pitch 1.5mm

    Drill Bit for drilling initial hole for thread tap.

    C-bore or Counter Bore for making recess for lip of insert, allowing insert to sit "flush".

    Tap guide, PN 34155 to guide tap in straight.

    Tap, PN J42385-411 for tapping new threads for insert.

    Driver, PN 34154 for installing thread insert.

    10 steel inserts 9.4mm length, PN 14153

    10 steel inserts 12.7mm length, PN 14155

    10 steel inserts 17.8mm length, PN 14157

  M18x1.5 - Contents of the TIME-SERT M18x1.50 portion of the kit includes the following -    Diameter 12mm and Thread Pitch measures 1.50mm

    Drill Bit 23/32" for drilling initial hole for thread tap.

    C-bore or Counter Bore for making recess for lip of insert, allowing insert to sit "flush".

    Tap guide, pn 38155 to guide tap in straight.

    Tap, for tapping new threads for insert.

    Driver, for installing thread insert.

    10 steel inserts 10mm length, PN 18151

    10 steel inserts 15mm length, PN 18157

    10 steel inserts 18.3mm length, PN 18153

 Instruction Manual (can be previewed here in pdf)

Time-Sert oil drain plug hole repair kit for aluminum pans. Repair on vehicle in most cases.
