Steelman 97170 Engine Ear Elite

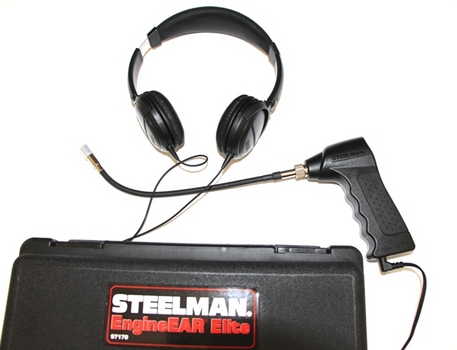

Steelman 97170 Engine Ear Elite image

Product #: JSP97170


Your Price: $115.84


Brand: J S Products (steelman)

Steelman electronic stethoscope with volume control (amplification) - sound and vibration modes, LED light in the wand to illuminate dark areas. Background noise blocked out when used in vibration mode. This mechanic's stethoscope has superior noise pinpointing accuracy compared to a conventional stethoscope. Tech's are finding more noises quicker with the Steelman Engine Ear. Read on for more information on this listening tool.
  • Ergonomic handle design with dual-durometer grip
  • Two Modes of operation: Electronic stethoscope – use to amplify sound during diagnosis or verification
  • Vibration Detection – Use to pinpoint faulty: bearings injectors, squeaks, rattles, etc.
  • Use noise-cancellation feature while in vibration detection mode
  • Mode selection switch with LED indicator
The EngineEAR® Elite is a compact listening device that combines two functions into one. Comfortable and lightweight, this unit offers dual modes of operation - Noise Detection and Vibration Detection. The electronic stethoscope is used to amplify sound during diagnosis or verification of proper engine operation. Vibration detection is used to pin-point faulty bearings, injectors and annoying squeaks and rattles etc. The technician can quickly eliminate back ground noise while in vibration mode using the mode selection switch. Rotary volume control allows the user to amplify sound as needed. Studio style headset has a tangle free cord. The detachable flexible wand has a bright, LED illuminated tip for easier point of reference and visual into dark, tight spaces. Packaged conveniently in a blow molded carrying case, this compact listening device is a must for every technician.

Operating Instructions
A. Listening Tool Mode
To use this device in the "Listening Tool" mode, place the mode selector switch in the "UP" or (-) position.

NOTE: While in the "Listening Tool" mode, the LED indicator will be RED in color.

This option is used to detect and amplify noises caused by bad bearings and bushings, exhaust leaks, bad plug wires, wind and water leaks and squeaks and rattles under the dash. While using the tool in this mode all sounds will be amplified and "back ground" noises or voices can be heard.

B. Vibration Detection Mode
To use this device in the "VIBRATION DETECTION" mode, place the mode selector switch in the "DOWN" or (=) position.

NOTE: While in the "VIBRATION DETECTION" mode the LED indicator will be AMBER in color.

This option is used by placing the tip or shaft of the flexible wand flush onto the surface of the suspected problem parts.

NOTE: Keeping the sensing tip or wand held flush against the suspect part, will help to further isolate the problem area. While in this mode, the sound microphone is disabled and only the vibration sensing microphone is operational. This mode will prevent the device from sensing "background" noises and allow the user to isolate the location of the vibration and/or the faulty component.
