Mount. 4.6, 5.4, 6.8 Spark Plug Blow Out Repair Kit

Product #: Mount-9200 DLT

Your Price: $229.99
Qty: View Shopping Cart

Detailed Description:

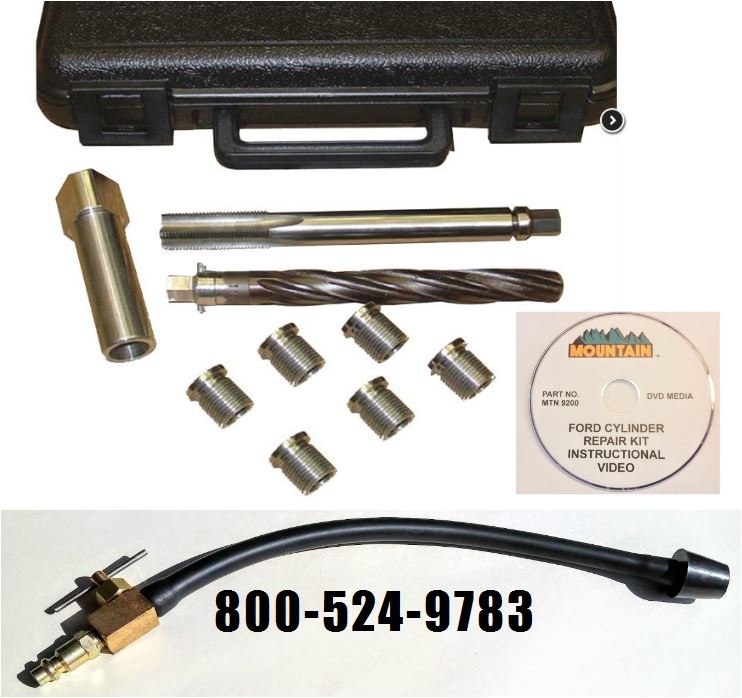

Calvan Tools CAL38900 (same as MTN9200), Ford spark plug insert installer is designed to aid in repairing Ford modular cylinder heads on 4.6, 5.4 and 6.8 4 valve engines (NOT for 3V engines or DOHC), see the two part video from the manufacturer in this listing and read our exclusive tech article on Ford Spark Plug Blow-Outs. Also see our mechanics tool blog with all our FAQ's on this subject in one central location, your question may have already been covered. Only doing one? See our Calvan 38900-1 kit that has one insert at a lower price. Additional inserts pn 389-100 are available here at DenLors and bulk pricing is available at our second website

• Quality, fool-proof repair system that is fast, cost effective and simple to use.

• Used to repair damaged heads from blown spark plugs, with an alloy steel insert.

• Cal 38900 Includes 6 (M14x1.25 Taper Seat) 389-100 thread inserts.
• Core Drill Bit / Reamer 11/16".
• Thread Tap - *Note the upper slot in the tool is the depth marker.
• Leak Tester to assist in determining valves are closed.
•DVD Instruction Video (same as below but better quality).
• Blow Molded Case
• The Calvan alloy steel over-size insert is thicker than competitive brands which allows for a superior repair.
• Co-invented by Gary Sellers which owns the Slicksert company. Cornwell sells the kit as a SLICK SERT for approximately twice the price as we do. Snap On sells it as the Blue Point FRT10.

Over the Fender Repair for 4.6, 5.4 & 6.8 liter Triton engines (excludes InTech, see Time-Sert 5553)
1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2004 Ford F150, F250, F350 Pick up Trucks
96, 97, 98, 99, 00, 01, 02, 03, 04, 05 - E150, E250, E350, Mustang, Crown Victoria, Expedition, Lincoln Navigator, Lincoln Continental, Lincoln Town Car & Mercury Grand Marquis. 2 Valves per cylinder (16 Valve Motors). Not for M16x1.5 Engines that have 3 Valves per cylinder (24 Valve Motors). See 39300 or 3221 for 3-Valve Engines from around 2005 to 2008.
Calvan Repair Kit Use Video 1 of 2

• Calvan's larger diameter insert can be used in cases where smaller repair threads have failed (.73" O.D.).

• Reduce vehicle down time and added expense by eliminating the need to send heads to machine shop.
• With the use of a fiber optic borescope technicians can inspect the cylinder for metal shavings prior to completion.
• This kit comes with a how to DVD video made by one of the creators of this kit.
* When directions are followed as directed in the "how to" video, there is no faster or better repair available, the repair threads are actually stronger than the original threads and the cost of the repair is only a fraction of the cost of replacement heads, the head gasket set, coolant, etc. Bookmark or save this page to favorites, it has all the information you need including the instruction video, links to replacement inserts and the Faq's blog.
Using the Calvan 38900 Specialty Tool Kit
It's worth saying again "the Calvan kit has a much thicker insert that can be used when other thinner repairs like the Heli-coil has failed to hold". Using the kit requires about the same access as if you were changing the spark plugs. Just a few steps more. The instruction video provides details on using the kit, but there are more tips that we have developed over the years that we have been selling this kit. These tips are emailed to our customers upon purchase. We will also personally answer questions if needed, but we've found the tips clarify the job.
At checkout just write "Tips" in the Comments field and we will email the tips when processing the order.
Tips - Emailed free after purchase.
