Ford 3V Timing Chain Wedge Ford Special Tool pn 303-1175

Ford 3V Timing Chain Wedge Ford Special Tool pn 303-1175 image

Product #: 303-1175 DLT


Your Price: $19.99

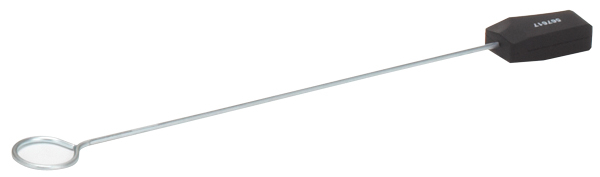

Timing chain wedge for Ford 3-valve engines, tool number 303-1175. Locking tool (WEDGE) for Ford 3V engines, is for preventing the timing chain from falling inside the cover when top end is being serviced. Eliminates the need to remove the front timing chain cover. Also see our wedge with the phaser tool, item number 6681. The wedge and phaser are often purchased at the same time as the Ford 3-Valve Spring Compressor 6684, which is the same as the Ford Special Tool number 303-1039. *Note Ford 3V engines started production in some models in 2004.

Instructions: 1. Install the 567617 (303-1175) timing chain locking tool wedge. (Figure 1) 2. Scribe a location mark on the timing chain and camshaft phaser sprocket assembly. (Figure 2) NOTE: Do not remove the 567617 (303-1175) at any time during service. If it's removed, the timing chain will move out of synchronization and the front cover will have to be removed to re-align timing marks for the engine. 3. Remove camshaft phaser sprocket to perform service according to instructions in service manual. 4. Torque all fasteners to factory specifications. 5. Remove 567617 (303-1175).
